SETeMa

Scientifically Engineered Textile Machines

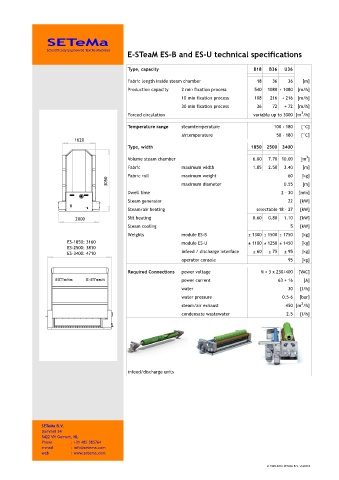

E-STeaM ES-B and ES-U technical specifications

Type, capacity B18 B36 U36
Fabric length inside steam chamber 18 36 36 [m]
Production capacity 2 min fixation process 540 1080 + 1080 [m/h]
10 min fixation process 108 216 + 216 [m/h]
30 min fixation process 36 72 + 72 [m/h]
3
Forced circulation variable up to 3000 [m /h]
Temperature range steamtemperature 100 - 180 [°C]
airtemperature 50 - 180 [°C]
1620
Type, width 1850 2500 3400
3
Volume steam chamber 6.00 7.70 10.00 [m ]
Fabric maximum width 1.85 2.50 3.40 [m]
Fabric roll maximum weight 60 [kg]
3050 maximum diameter 0.55 [m]

Dwell time 2 - 30 [min]
Steam generator 22 [kW]
Steam/air heating selectable 18 - 27 [kW]
2000 Slit heating 0.60 0.80 1.10 [kW]
Steam cooling 5 [kW]
Weights module ES-B ± 1300 ± 1500 ± 1750 [kg]
ES-1850: 3160 module ES-U ± 1100 ± 1250 ± 1450 [kg]
ES-2500: 3810
ES-3400: 4710 infeed / discharge interface ± 60 ± 75 ± 95 [kg]
operator console 95 [kg]

Required Connections power voltage N + 3 x 230/400 [VAC]
power current 63 + 16 [A]
water 30 [l/h]
water pressure 0.5-6 [bar]
3
steam/air exhaust 450 [m /h]
condensate wastewater 2.5 [l/h]

infeed/discharge units

SETeMa B.V.
Dommel 34
5422 VH Gemert, NL
Phone : +31 485 385764
e-mail : info@setema.com
web : www.setema.com
