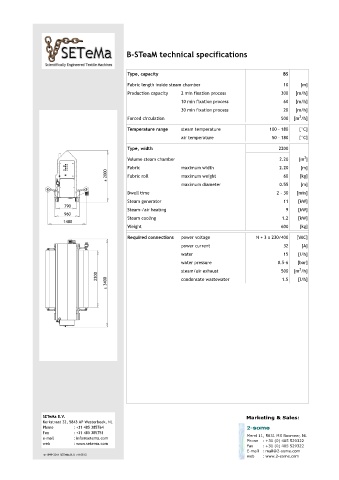

B-STeaM technical specifications
Type, capacity BS
Fabric length inside steam chamber 10 [m]
Production capacity 2 min fixation process 300 [m/h]
10 min fixation process 60 [m/h]
30 min fixation process 20 [m/h]
3
Forced circulation 500 [m /h]
Temperature range steam temperature 100 - 180 [°C]
air temperature 50 - 180 [°C]
Type, width 2200
3
Volume steam chamber 2.20 [m ]
Fabric maximum width 2.20 [m]
Fabric roll maximum weight 60 [kg]
maximum diameter 0.55 [m]
Dwell time 2 - 30 [min]
Steam generator 11 [kW]
Steam-/air heating 9 [kW]
Steam cooling 1.2 [kW]
Weight 600 [kg]
Required connections power voltage N + 3 x 230/400 [VAC]
power current 32 [A]
water 15 [l/h]
water pressure 0.5-6 [bar]
3
steam/air exhaust 500 [m /h]
condensate wastewater 1.5 [l/h]
