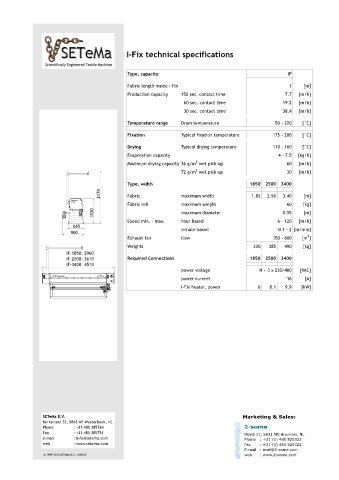

I-Fix technical specifications

Type, capacity IF
Fabric length inside I-Fix 1 [m]
Production capacity 150 sec. contact time 7.7 [m/h]
60 sec. contact time 19.2 [m/h]
30 sec. contact time 38.4 [m/h]
Temperature range Drum temperature 50 - 220 [°C]

Fixation Typical fixation temperature 175 - 200 [°C]

Drying Typical drying temperature 110 - 160 [°C]
Evaporation capacity 4 - 7.5 [kg/h]
2
Maximum drying capacity 36 g/m wet pick-up 60 [m/h]
2
72 g/m wet pick-up 30 [m/h]
Type, width 1850 2500 3400
2170 Fabric maximum width 1.85 2.50 3.40 [m]
Fabric roll maximum weight 60 [kg]
1030 maximum diameter 0.55 [m]
Speed min. - max. hour based 6 - 120 [m/h]
665
900 minute based 0.1 - 2 [m/min]
3
Exhaust fan flow 150 - 600 [m ]
Weights 330 385 490 [kg]
IF-1850: 2960
IF-2500: 3610 Required Connections 1850 2500 3400
IF-3400: 4510
power voltage N + 3 x 230/400 [VAC]
power current 16 [A]
I-Fix heater, power 6 8.1 9.9 [kW]
