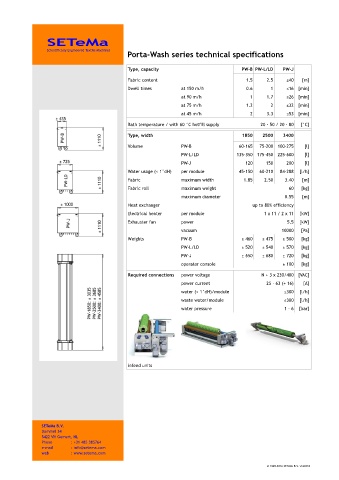

Porta-Wash series technical specifications

Type, capacity PW-B PW-L/LD PW-J
Fabric content 1.5 2.5 ≤40 [m]
Dwell times at 150 m/h 0.6 1 ≤16 [min]
at 90 m/h 1 1.7 ≤26 [min]
at 75 m/h 1.2 2 ≤32 [min]
at 45 m/h 2 3.3 ≤53 [min]

Bath temperature / with 60 °C hotfill supply 20 - 50 / 20 - 80 [°C]
Type, width 1850 2500 3400

Volume PW-B 60-165 75-200 100-275 [l]
PW-L/LD 135-350 175-450 225-600 [l]
PW-J 120 150 200 [l]
Water usage (< 1°dH) per module 45-150 60-210 84-288 [l/h]
Fabric maximum width 1.85 2.50 3.40 [m]
Fabric roll maximum weight 60 [kg]
maximum diameter 0.55 [m]
Heat exchanger up to 80% efficiency
Electrical heater per module 1 x 11 / 2 x 11 [kW]
Exhauster fan power 5.5 [kW]
vacuum 10000 [Pa]
Weights PW-B ± 460 ± 475 ± 500 [kg]
PW-L/LD ± 520 ± 540 ± 570 [kg]
PW-J ± 650 ± 680 ± 720 [kg]
operator console ± 100 [kg]

Required connections power voltage N + 3 x 230/400 [VAC]
power current 25 - 63 (+ 16) [A]
water (< 1°dH)/module ≤300 [l/h]
waste water/module ≤300 [l/h]
water pressure 1 - 6 [bar]

infeed units
