SETeMa

                 Scientifically Engineered Textile Machines

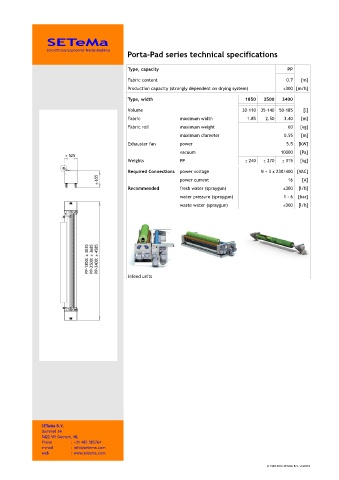

                                              Porta-Pad series technical specifications

                                              Type, capacity                                          PP
                                              Fabric content                                          0.7  [m]
                                              Production capacity (strongly dependent on drying system)  ≤300 [m/h]
                                              Type, width                              1850   2500  3400

                                              Volume                                  30-110  35-140  50-185  [l]
                                              Fabric            maximum width           1.85  2.50   3.40  [m]
                                              Fabric roll       maximum weight                        60  [kg]
                                                                maximum diameter                     0.55  [m]
                                              Exhauster fan     power                                 5.5  [kW]
                                                                vacuum                              10000  [Pa]
                                              Weights           PP                     ± 240  ± 270  ± 315  [kg]
                                              Required Connections  power voltage            N + 3 x 230/400 [VAC]
                                                                power current                         16   [A]
                                              Recommended       fresh water (spraygun)              ≤300  [l/h]
                                                                water pressure (spraygun)            1 - 6  [bar]
                                                                waste water (spraygun)              ≤300  [l/h]














                                              infeed units
