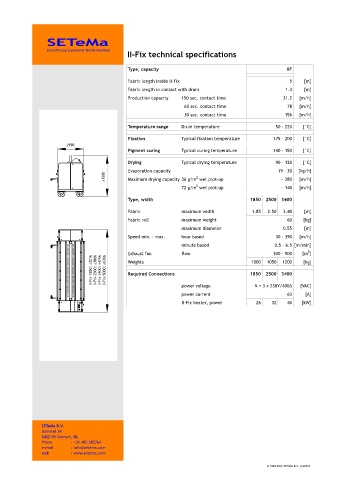

II-Fix technical specifications

Type, capacity IIF
Fabric length inside II-Fix 5 [m]
Fabric length in contact with drum 1.3 [m]
Production capacity 150 sec. contact time 31.2 [m/h]
60 sec. contact time 78 [m/h]
30 sec. contact time 156 [m/h]
Temperature range Drum temperature 50 - 220 [°C]

Fixation Typical fixation temperature 175 - 200 [°C]
Pigment curing Typical curing temperature 140 - 150 [°C]

Drying Typical drying temperature 90 - 120 [°C]
Evaporation capacity 19 - 30 [kg/h]
2
Maximum drying capacity 36 g/m wet pick-up ~ 280 [m/h]
2
72 g/m wet pick-up ~ 140 [m/h]
Type, width 1850 2500 3400

Fabric maximum width 1.85 2.50 3.40 [m]
Fabric roll maximum weight 60 [kg]
maximum diameter 0.55 [m]
Speed min. - max. hour based 30 - 390 [m/h]
minute based 0.5 - 6.5 [m/min]
3
Exhaust fan flow 300 - 900 [m ]
Weights 1000 1050 1200 [kg]

Required Connections 1850 2500 3400
power voltage N + 3 x 230Y/400∆ [VAC]
power current 63 [A]
II-Fix heater, power 26 32 40 [kW]

SETeMa B.V.
Dommel 34
5422 VH Gemert, NL
Phone : +31 485 385764
e-mail : info@setema.com
web : www.setema.com

© 1999-2016 SETeMa B.V. v160218
