SETeMa

Scientifically Engineered Textile Machines

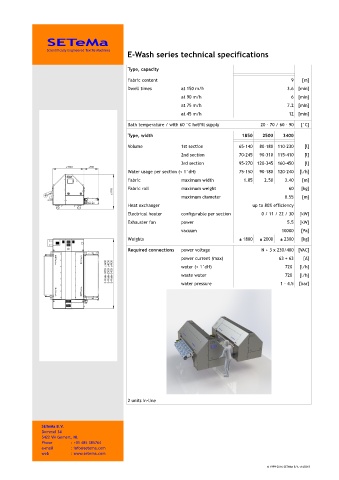

E-Wash series technical specifications

Type, capacity
Fabric content 9 [m]
Dwell times at 150 m/h 3.6 [min]
at 90 m/h 6 [min]
at 75 m/h 7.2 [min]
at 45 m/h 12 [min]

Bath temperature / with 60 °C hotfill supply 20 - 70 / 60 - 90 [°C]
Type, width 1850 2500 3400

Volume 1st section 65-140 80-180 110-230 [l]
2nd section 70-245 90-310 115-410 [l]
3rd section 95-270 120-345 160-450 [l]
Water usage per section (< 1°dH) 75-150 90-180 120-240 [l/h]
Fabric maximum width 1.85 2.50 3.40 [m]
Fabric roll maximum weight 60 [kg]
maximum diameter 0.55 [m]
Heat exchanger up to 80% efficiency
Electrical heater configurable per section 0 / 11 / 22 / 30 [kW]
Exhauster fan power 5.5 [kW]
vacuum 10000 [Pa]
Weights ± 1800 ± 2000 ± 2300 [kg]
Required connections power voltage N + 3 x 230/400 [VAC]
power current (max) 63 + 63 [A]
water (< 1°dH) 720 [l/h]
waste water 720 [l/h]
water pressure 1 - 4.5 [bar]

2 units in-line

SETeMa B.V.
Dommel 34
5422 VH Gemert, NL
Phone : +31 485 385764
e-mail : info@setema.com
web : www.setema.com
