SETeMa

                 Scientifically Engineered Textile Machines

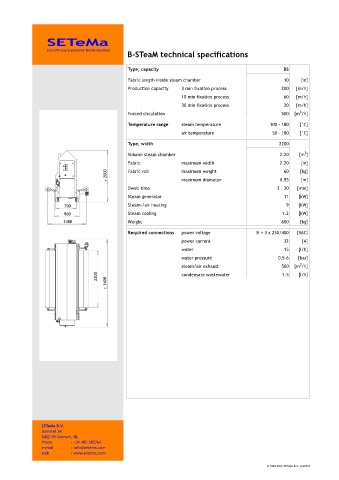

                                              B-STeaM technical specifications

                                              Type, capacity                                         BS
                                              Fabric length inside steam chamber                     10    [m]
                                              Production capacity  3 min fixation process           200  [m/h]
                                                                 10 min fixation process             60  [m/h]
                                                                 30 min fixation process             20  [m/h]
                                                                                                          3
                                              Forced circulation                                    500  [m /h]
                                              Temperature range  steam temperature              100 - 180  [°C]
                                                                 air temperature                 50 - 180  [°C]

                                              Type, width                                          2200
                                                                                                            3
                                              Volume steam chamber                                 2.20   [m ]
                                              Fabric             maximum width                     2.20    [m]
                                              Fabric roll        maximum weight                      60   [kg]
                                                                 maximum diameter                  0.55    [m]
                                              Dwell time                                          3 - 30  [min]
                                              Steam generator                                        11   [kW]
                                              Steam-/air heating                                      9   [kW]
                                              Steam cooling                                         1.2   [kW]
                                              Weight                                                600   [kg]
                                              Required connections  power voltage          N + 3 x 230/400  [VAC]
                                                                 power current                       32    [A]
                                                                 water                               15   [l/h]
                                                                 water pressure                    0.5-6  [bar]
                                                                                                          3
                                                                 steam/air exhaust                  500  [m /h]
                                                                 condensate wastewater              1.5   [l/h]
